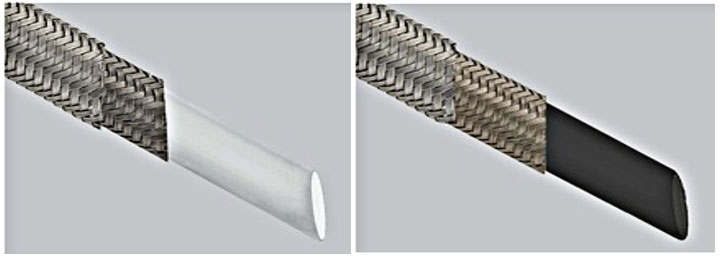

These ABCOFLEX high performance gas hoses are specially processed to minimise permeation. They are designed specifically for high pressure gas applications where low permeation rates are required. This hose is available in anti-static black.
Construction:
Produced with PTFE according to "ASTM D4895, Type 1, Grade 4, Class B"
1st Braid: AISI 304S15 Hard Drawn Stainless Steel Wire
2nd Braid: AISI 304S15 Hard Drawn Stainless Steel Wire
Characteristics:
- Extreme flexibility
- High pressure
- High resistance to the aging
- Low maintenance
- Chemical inertness
Temperature:
-70 to +260°C depending on the working pressure.
Fittings:
Male, Female, Flanged, Triclover and PTFE Flared / Encapsulated fittings available in all the material.
| Code |
ID |
OD |
Working Pressure |
BURST Pressure |
Minimum Bend Radius |
|
MM |
MM |
BAR |
BAR |
MM |
| THGC06 |
6.35 |
11.43 |
320 |
1280 |
76 |
