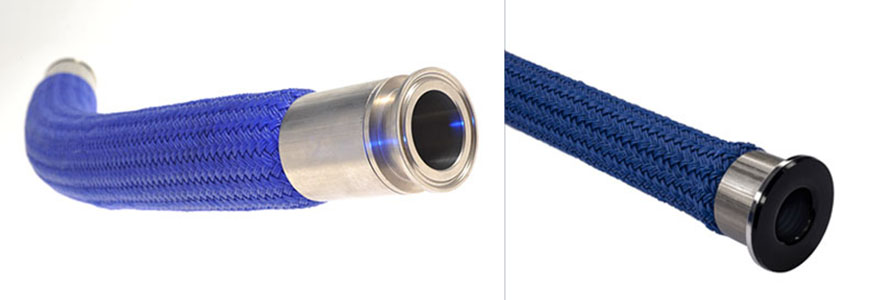

Polypropylene braided hose is often preferred in applications where aggressive environment tend to corrode SS braid. PP braid is lighter in weight and provides extreme flexibility. The tube is available in virgin or conductive black where electrostatic dissipation is required. Also available special vacuum resistant hose.

Application:
PP braided assemblies can be used for temperatures ranging from -70° C to 90° C. Suitable for exotic chemical transfer and applications requiring frequent handling and high flexibility.

Fittings:
Male, female, flanged, Triclover and PTFE flared / encapsulated fittings available in all the material.

Extruded Convoluted PTFE Hose with PP Braid
Code ID OD Working Pressure Burst Pressure Minimum Bend Radius
MM MM BAR BAR MM
PX020 20 26 10 40 70
PX025 25 34 10 40 90
PX032 32 40 10 40 120
PX038 38 46 10 40 150
PX050 50 60 10 40 180
PX076 76 90 6 24 300
