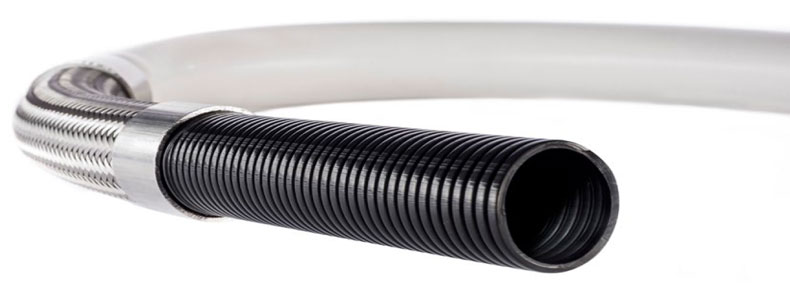

Super flexible, smooth bore, outer convoluted, PTFE hose. When space is an issue but a smoothbore is a must for an uninterrupted flow and ease of cleaning, this hose is the ultimate problem solver. Available in FDA approved Virgin or Anti-static PTFE tubes.
PTFE lined ‘Flared / Tafted’ fittings to improve cleanliness, remove bug traps and improve the ability to clean in place.
Application:
Pharmaceutical, Biopharm, Chemical, Food & Beverage + Ultra clean environments.
Design:
Smoothbore outer convoluted PTFE tube with high tensile Stainless Steel braid options with Silicone or EPDM cover
Inner layer:
FDA approved Virgin or Anti-static PTFE tube
Outer layer:
Extruded Silicone / EPDM jacket
Temperature Min:
-60°C
Temperature Max:
+260°C
| Code |
ID |
OD |
Working Pressure |
BURST Pressure |
Minimum Bend Radius |
|
MM |
MM |
BAR |
BAR |
MM |
| UCN20 |
19.5 |
24 |
60 |
240 |
50 |
| UCN22 |
22 |
27 |
55 |
220 |
55 |
| UCN25 |
26 |
31.5 |
50 |
200 |
70 |
| UCN32 |
32.6 |
38.8 |
45 |
180 |
100 |
