Application:
Suction and discharge hose for chemical products.

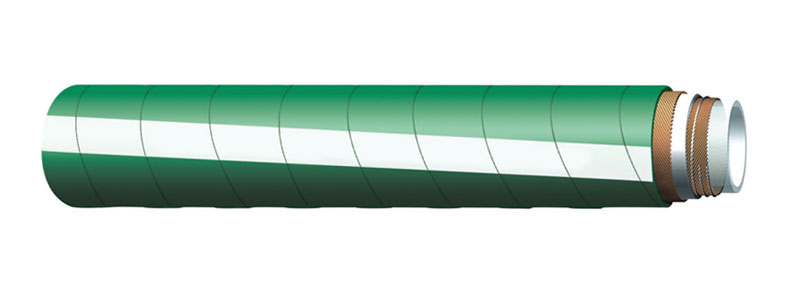

Construction:
Tube in smooth cross linked polyethylene transparent (XLPE), Textile plies, anti-static copper wire to discharge static electricity, steel wire helix. Cover in smooth EPDM, conductive, ageing and ozone resistant.
Temperature Range:
-30°C - +90°C.
| Code |
ID |
OD |
Working Pressure |
BURST Pressure |
Minimum Bend Radius |
Vacuum |
|
MM |
MM |
BAR |
BAR |
MM |
MM of Hg |
| XL020 |
20 |
29 |
10 |
40 |
65 |
760 |
| XL025 |
25 |
36 |
10 |
40 |
90 |
760 |
| XL032 |
32 |
46 |
10 |
40 |
150 |
760 |
| XL038 |
38 |
52 |
10 |
40 |
100 |
760 |
| XL050 |
50 |
61 |
10 |
40 |
150 |
760 |
| XL063 |
63 |
74 |
10 |
40 |
280 |
760 |
| XL076 |
76 |
86 |
10 |
40 |
350 |
700 |
| XL100 |
101 |
118 |
10 |
40 |
760 |
700 |
