Application:
Suitable for water, steam and most chemicals e.g. solvents, gases, gases at high temperatures and melting alkalis. This hose is very flexible.
Construction:

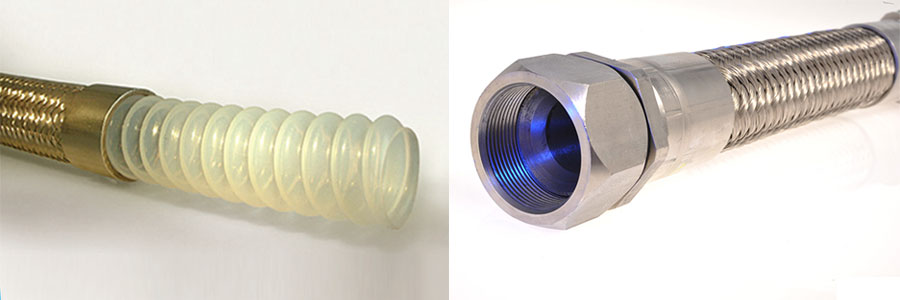

Convoluted PTFE with steel braiding AISI 304. Approved by FDA, DVGW and BFR.
Temperature Range:
-60°C - +250°C.
| Code |
ID |
OD |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
|
MM |
MM |
BAR |
BAR |
MM |
| PKX12 |
13 |
18.5 |
100 |
300 |
30 |
| PKX20 |
20 |
25 |
70 |
210 |
70 |
| PKX25 |
25 |
33 |
45 |
140 |
90 |
| PKX32 |
32 |
40 |
40 |
120 |
120 |
| PKX38 |
38 |
46 |
32 |
100 |
150 |
| PKX50 |
50 |
60 |
26 |
80 |
180 |
| PKX68 |
63 |
81 |
18 |
60 |
250 |
| PKX76 |
76 |
90 |
18 |
60 |
300 |
| PKX100 |
100 |
121 |
14 |
45 |
400 |
| PKX150 |
150 |
190 |
8 |
25 |
500 |
Available In:
- • Food Grade
- • Double Braid
- • Vacuum
- • Permanently Anti-static
- • Polypropylene Braid
