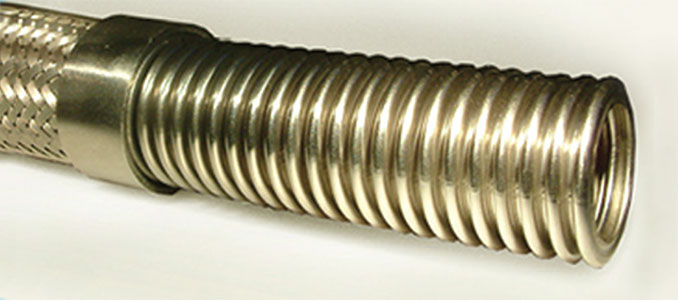

Corrugated-Metal-Hose-with-SS-Braiding

Application:
Suitable for high pressure hot water, steam, hot oils, oxygen etc. Loading and unloading of tankers with gas, chemicals and other system On diesel and petrol motors.

Construction:
Stainless steel corrugated metal hose with braiding offered in austenitic steel.

Temperature Range:
-269°C - +600°C.

Code Nominal Bore Minimum Bend Radius Single Braid Double Braid
  N.B MM Static MM Flexing MM Max. Pressure
Kg/cm2
Test Pressure
Kg/cm2
Max Pressure
Kg/cm2
Test Pressure
Kg/cm2
SM006 6 25 100 100 150 160 240
SM010 10 40 150 90 135 144 216
SM012 12 50 200 80 120 128 192
SM020 20 70 200 64 96 102 153
SM025 25 90 200 50 75 80 120
SM032 32 110 250 40 60 64 96
SM038 40 130 250 30 45 48 92
SM050 50 175 350 28 42 44 66
SM063 63 200 410 24 36 38 57
SM076 76 205 450 18 27 28 42
SM100 100 230 560 16 24 26 39
SM150 150 320 816 10 15 16 24
Available In:
  • • Food Grade
  • • Double Braid
  • • Vacuum
